Relief Holes and Markings (1 hours)

2026-04-29

I drilled all relief holes in bulkheads C1 to C5. Without relief holes there is a risk of the plywood skins being damaged by pressure changes. The labelling is not strictly necessary, but I marked all holes with black circles and labelled the bulkheads using the acetone toner-transfer method.

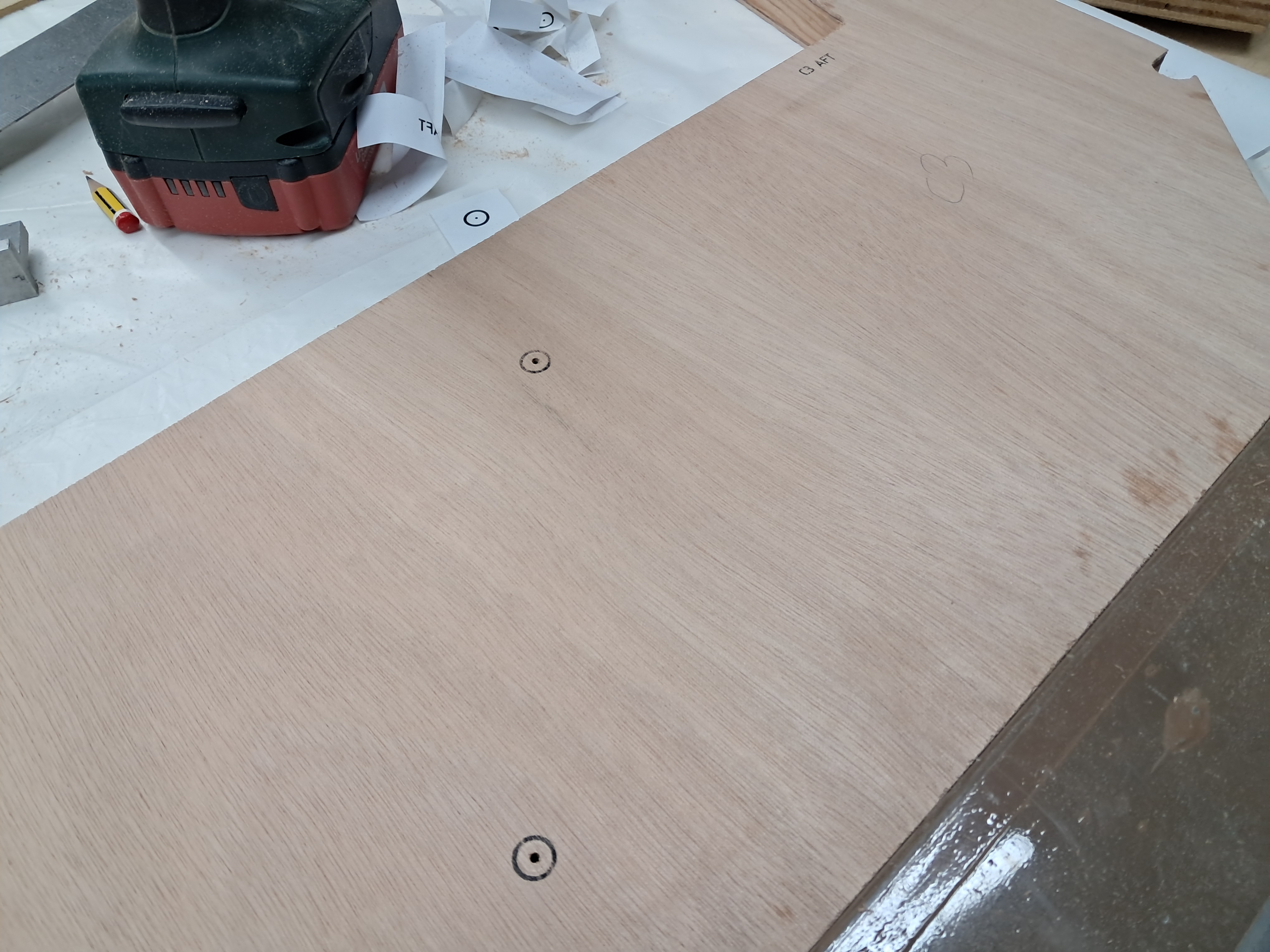

Relief holes drilled.
Relief holes drilled.

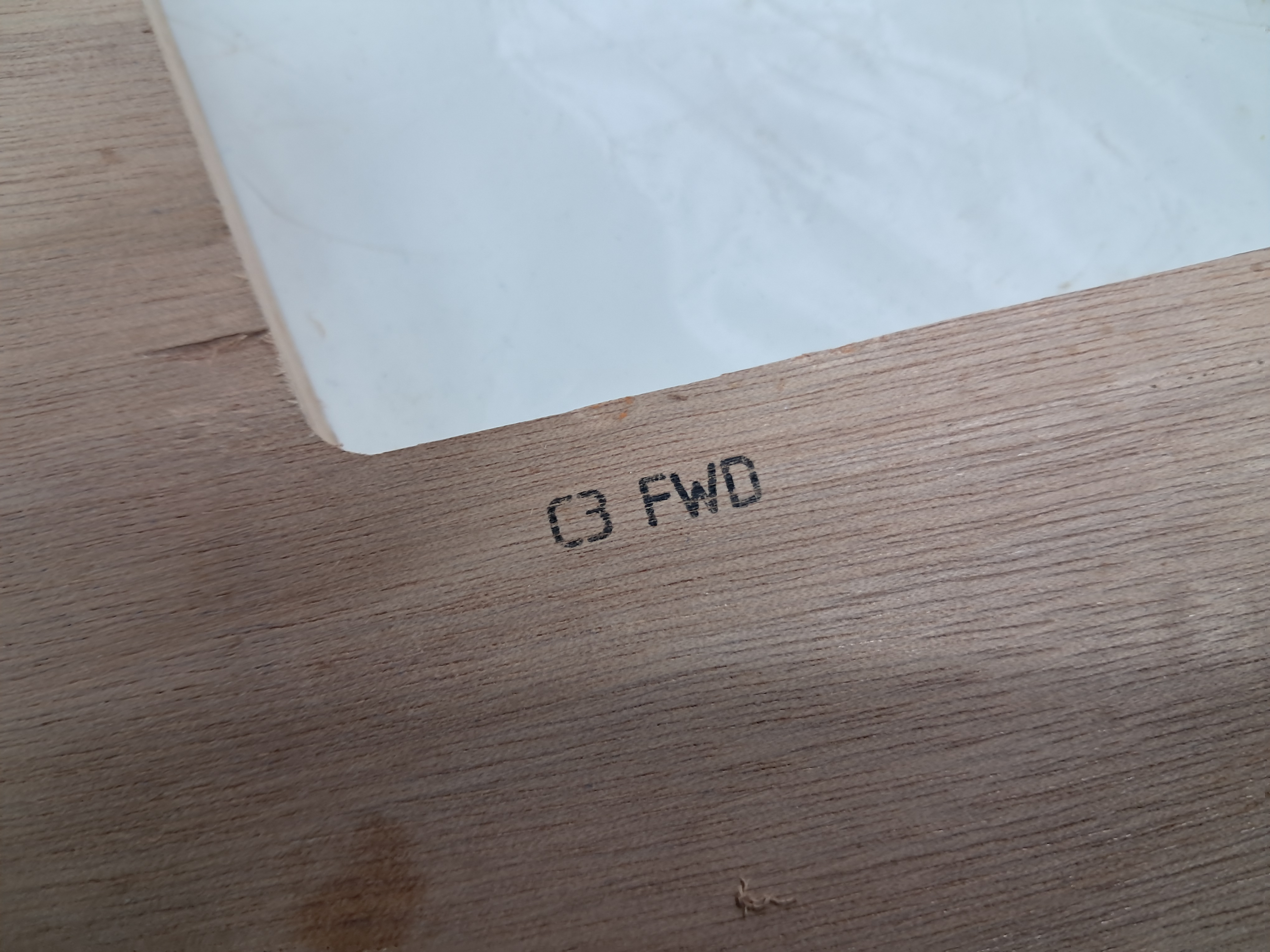

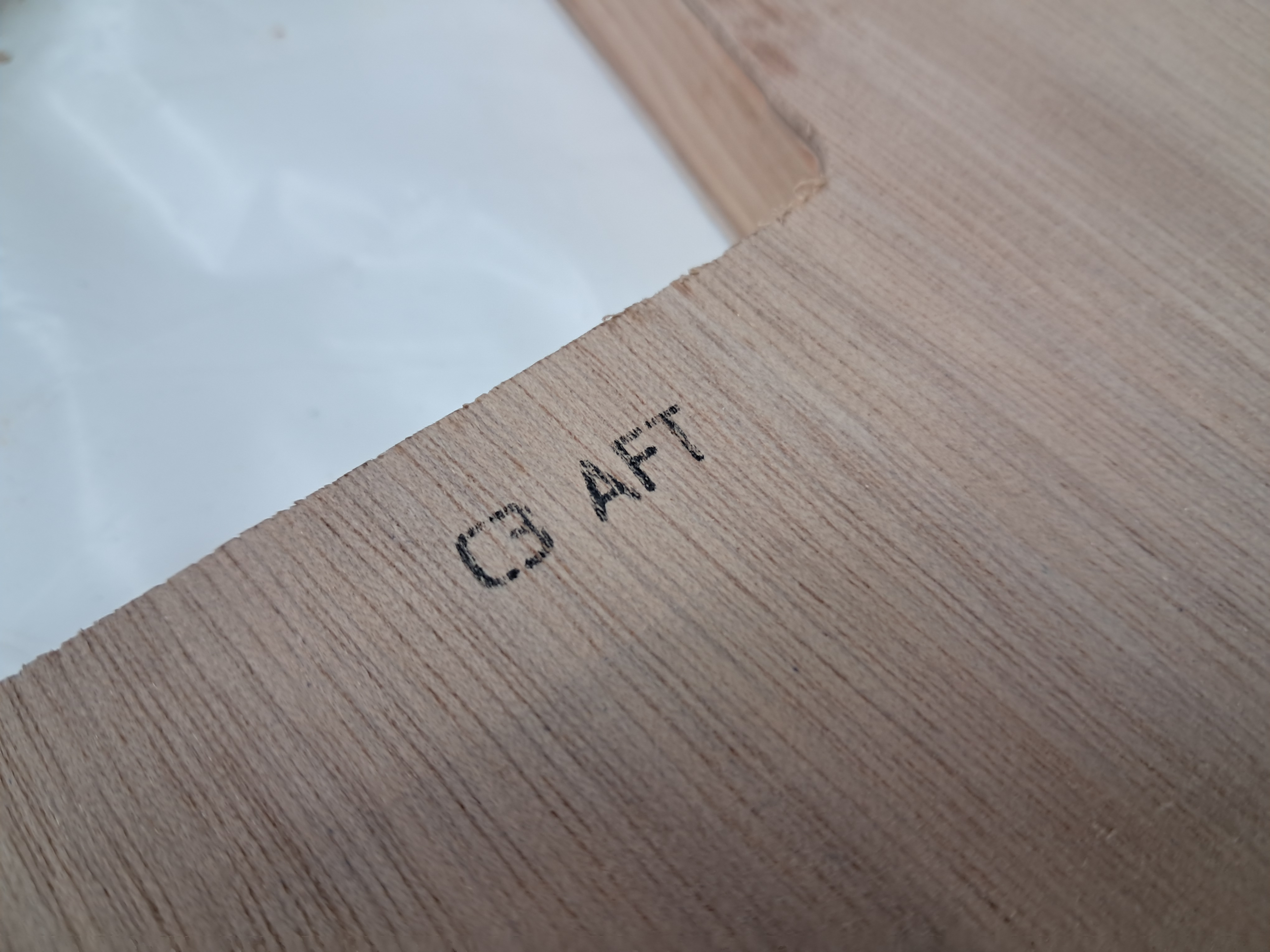

Bulkhead labels using toner transfer.
Bulkhead labels using toner transfer.
Holes marked with black circles.
Holes marked with black circles.
