Gluing the Second Pair of 18x18 mm Longerons (3.0 hours)

2026-09-08

After returning from my summer holiday, I found time to glue the remaining pair of 18x18 mm longerons to the fuselage. Not much else to report.

I spent a couple of hours fitting the longerons to the fuselage, cutting the notches and dry-fitting the parts. The gluing itself went smoothly. Since the longerons had been held roughly in position on the fuselage for a couple of weeks, little force was needed to hold them in place during gluing.

Now I need to clean up and sand the fuselage, then inspect all the joints carefully.

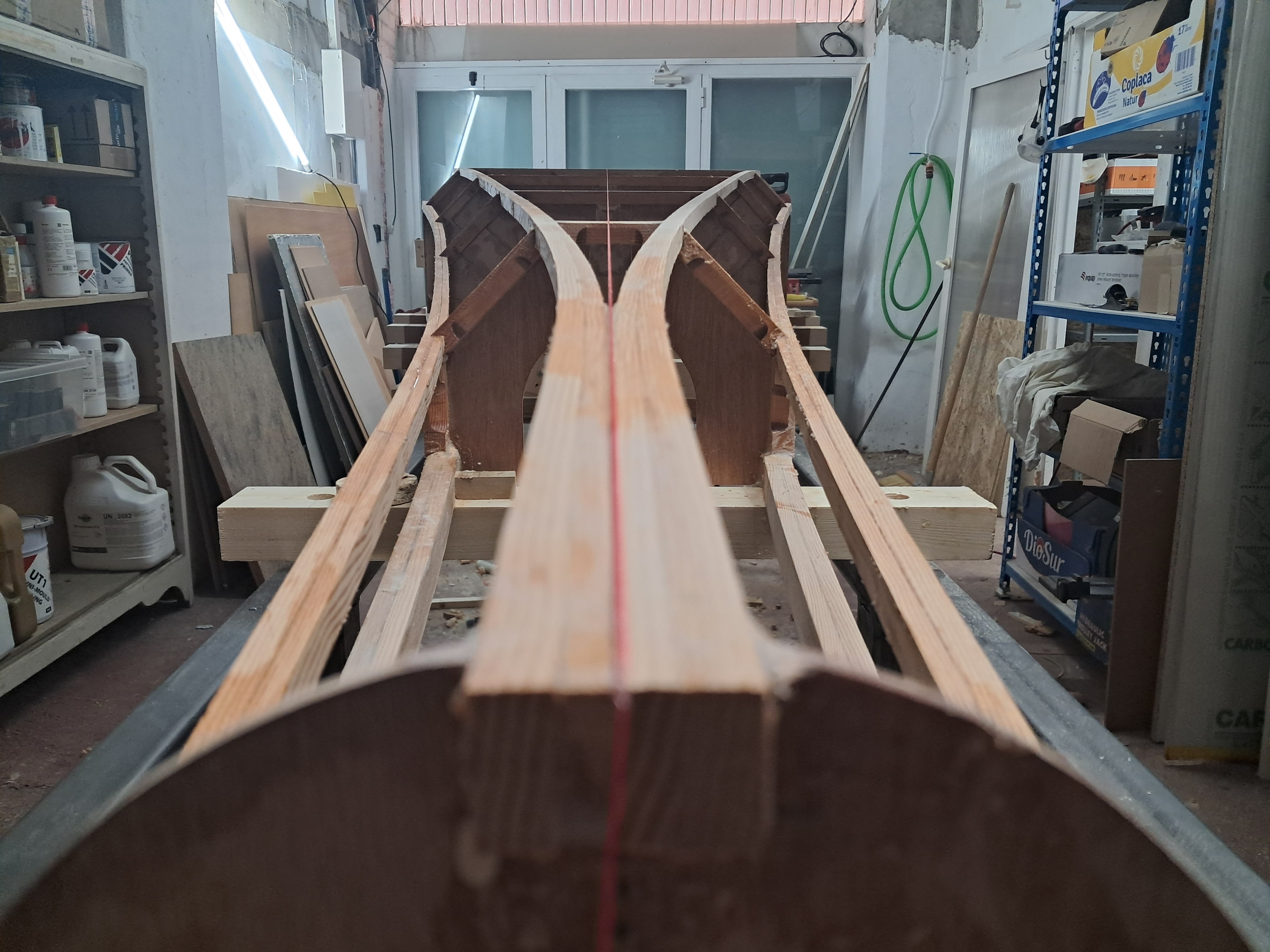

View along the fuselage after gluing the remaining 18x18 mm longerons.
View along the fuselage after gluing the remaining 18x18 mm longerons.
Overall view of the fuselage framework on the assembly jig after removing the clamps.
Overall view of the fuselage framework on the assembly jig after removing the clamps.

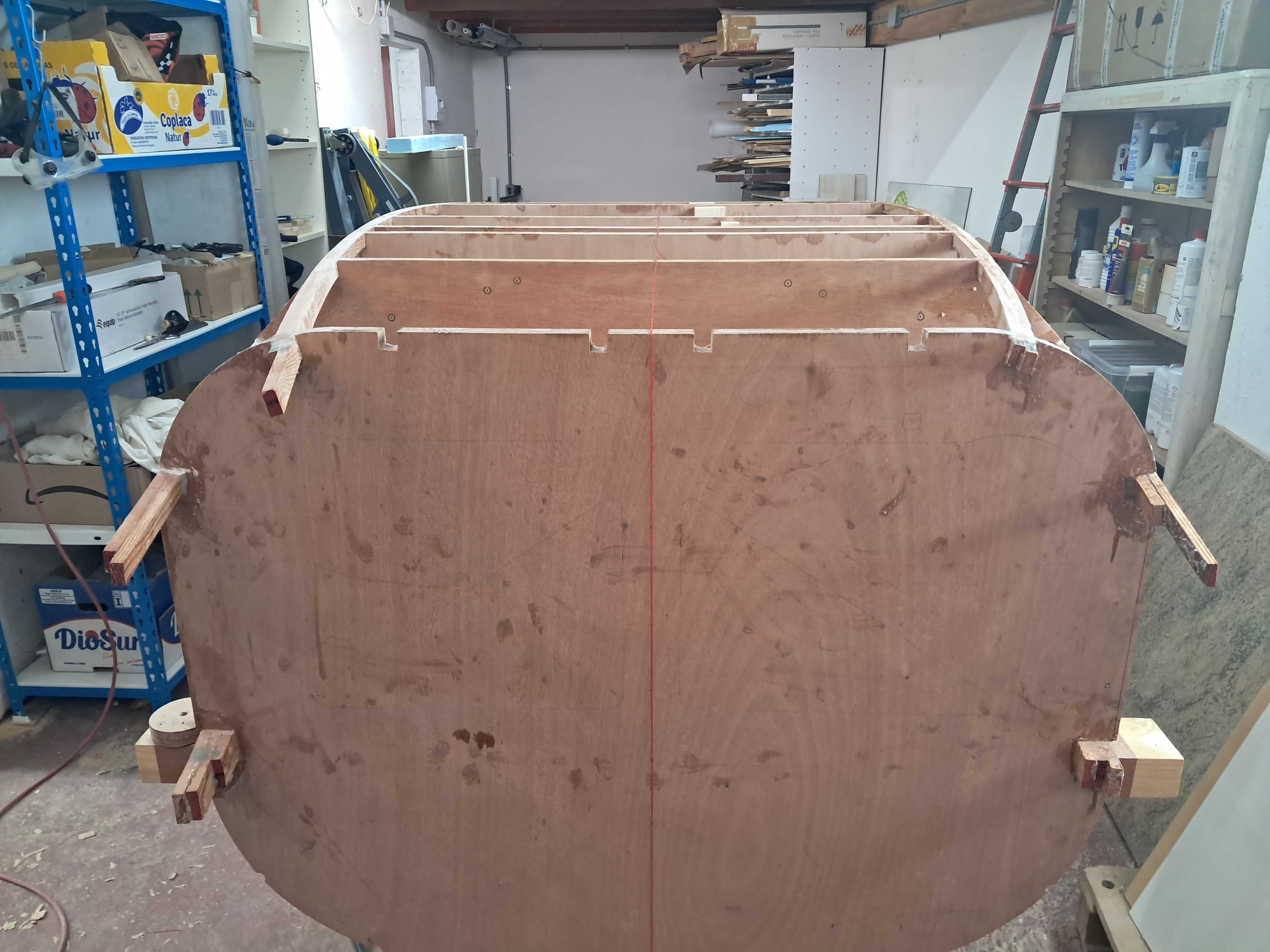

View from the firewall, with the longerons fitted along both sides of the fuselage.
View from the firewall, with the longerons fitted along both sides of the fuselage.

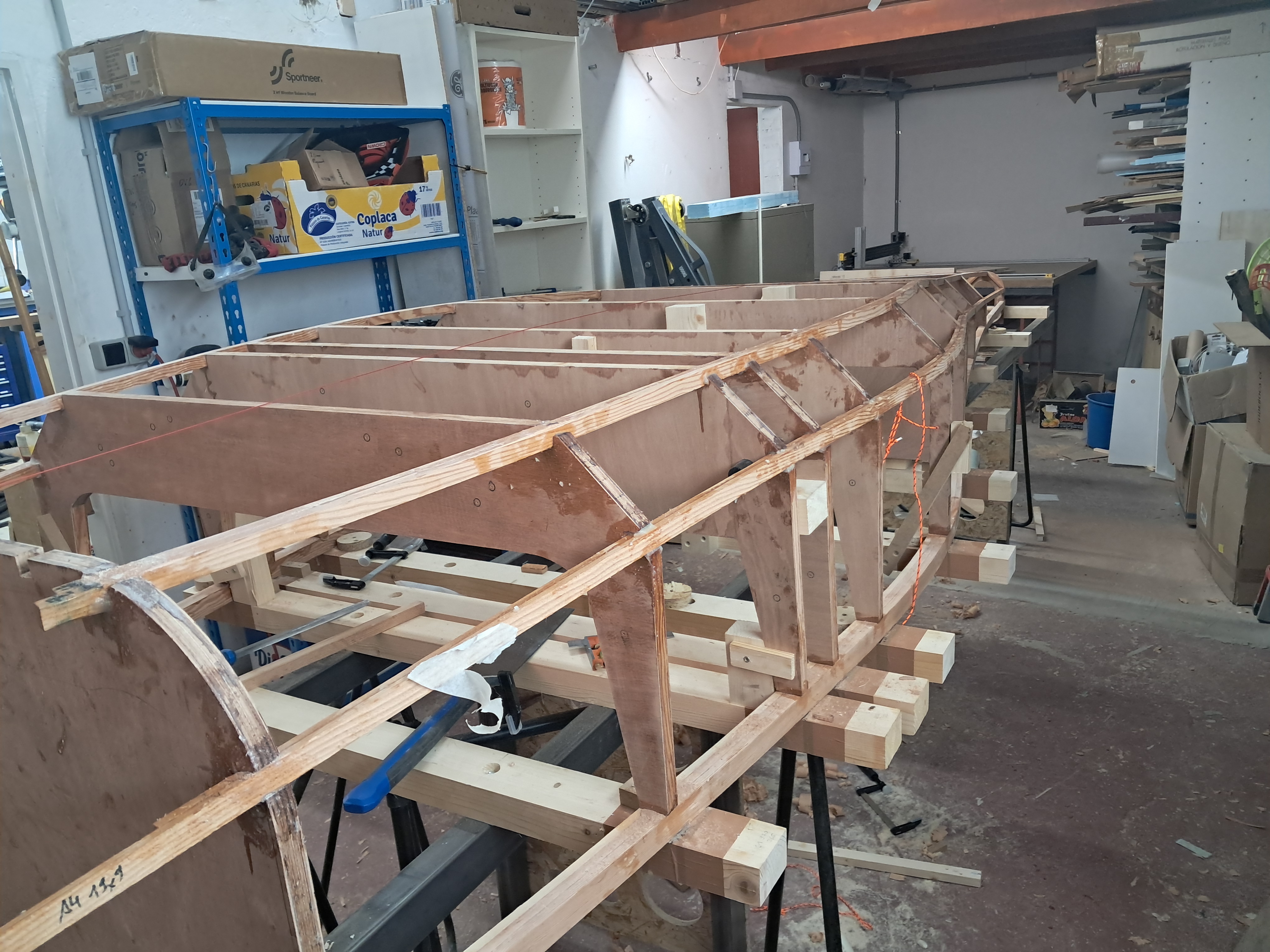

Side view of the fuselage framework and the glued-in longerons.
Side view of the fuselage framework and the glued-in longerons.

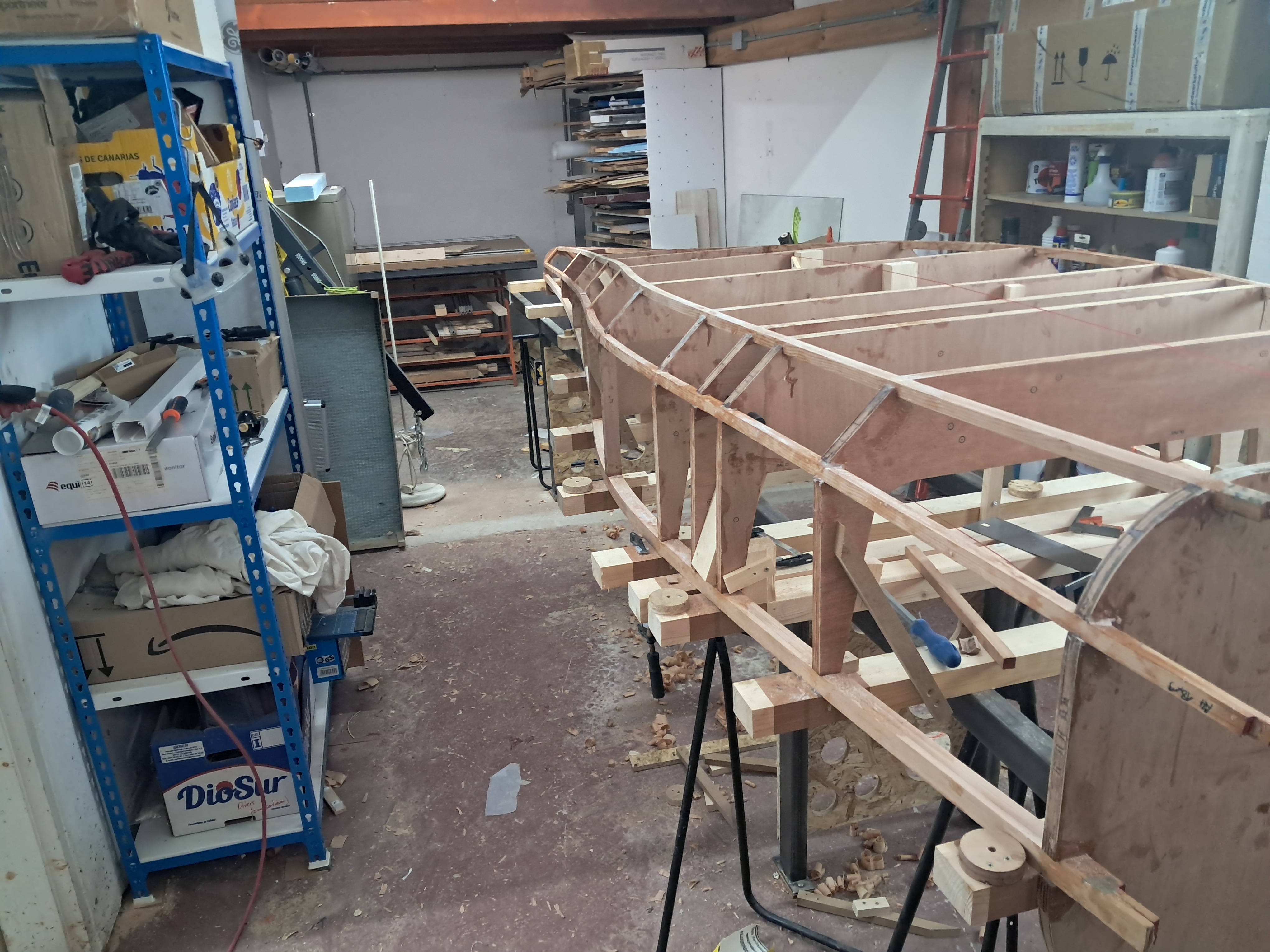

View of the longerons and bulkheads from the opposite side.
View of the longerons and bulkheads from the opposite side.

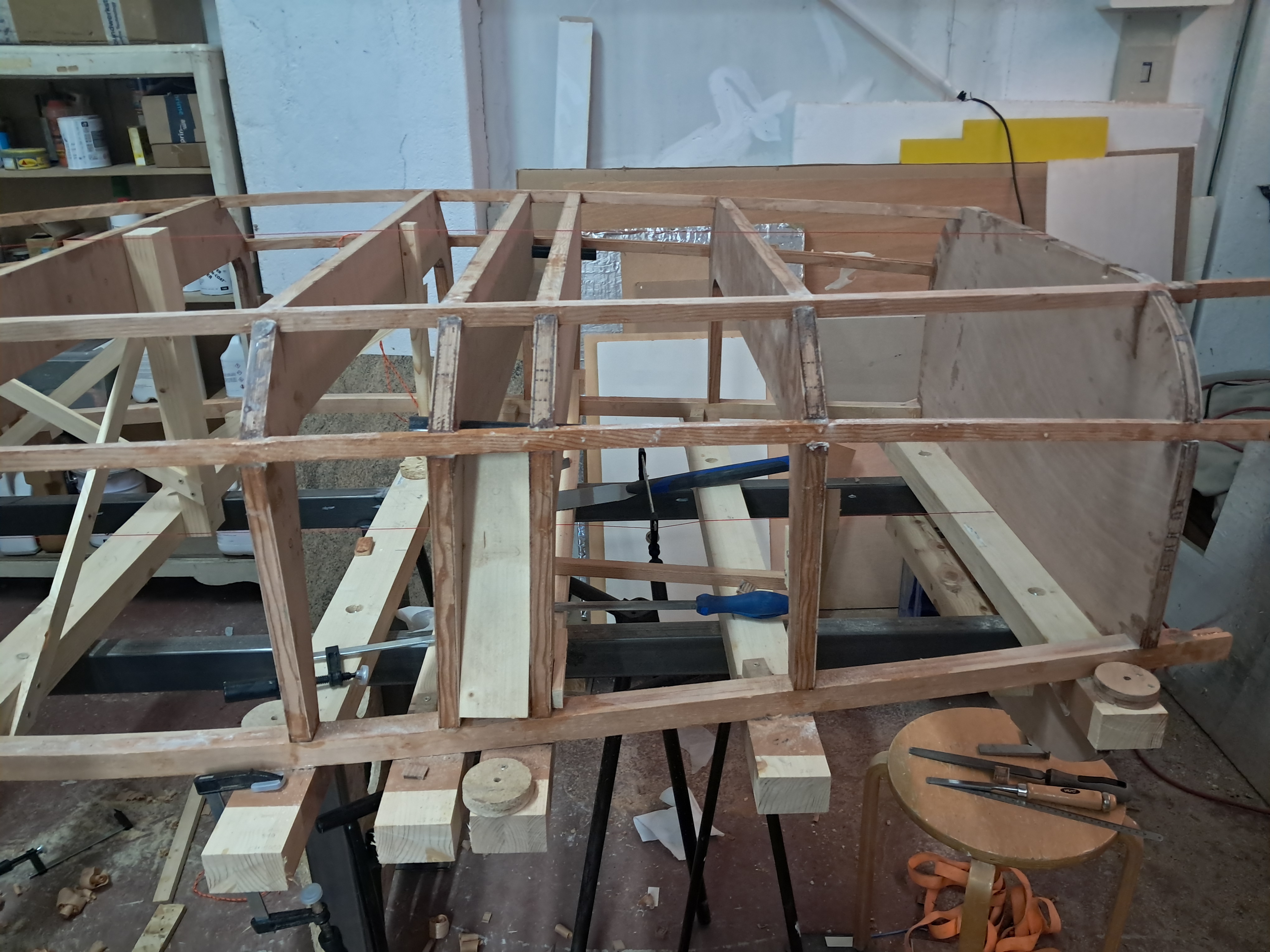

Side view showing the longerons passing through the bulkhead notches.
Side view showing the longerons passing through the bulkhead notches.

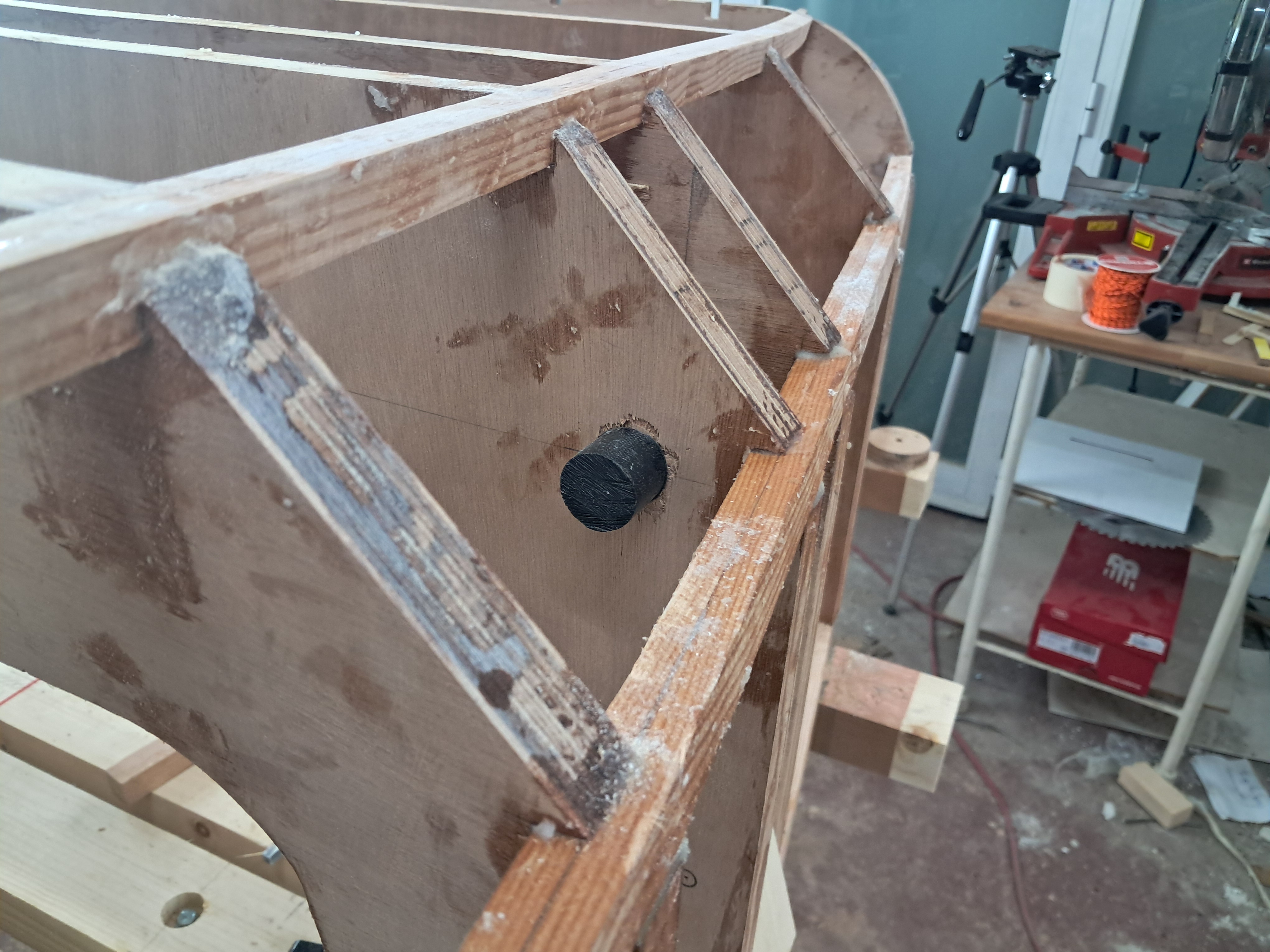

Close-up of the longeron-to-bulkhead joints before cleaning up.
Close-up of the longeron-to-bulkhead joints before cleaning up.

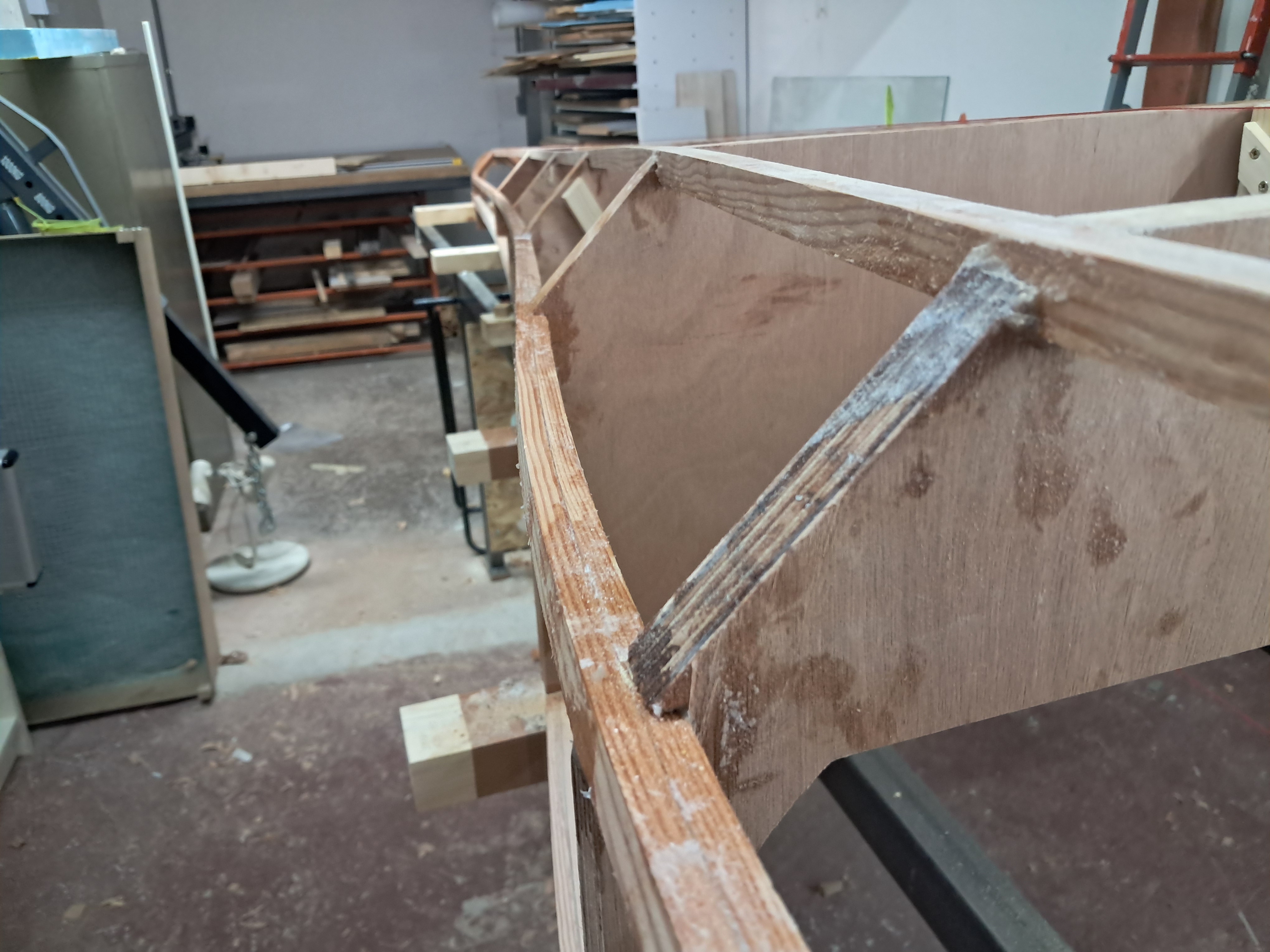

Another view of the glued joints and the curvature of the longerons.
Another view of the glued joints and the curvature of the longerons.
