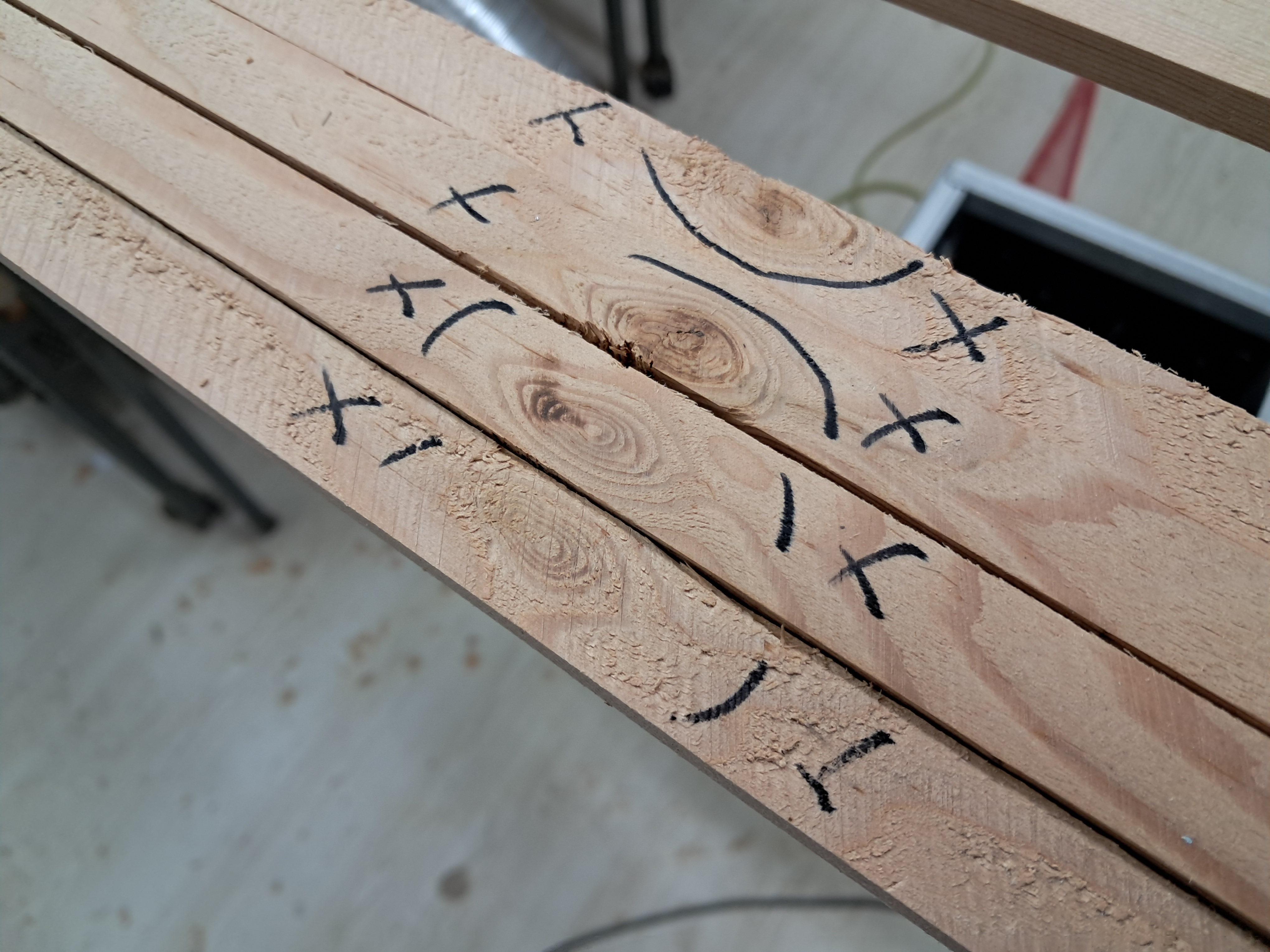

Similar to the 30x10 mm longerons prepared earlier, there is another set of eight longerons made of 18x9 mm strips. Same story, some strips had defects and I had to plan carefully to make the most of the material I had.
×
×

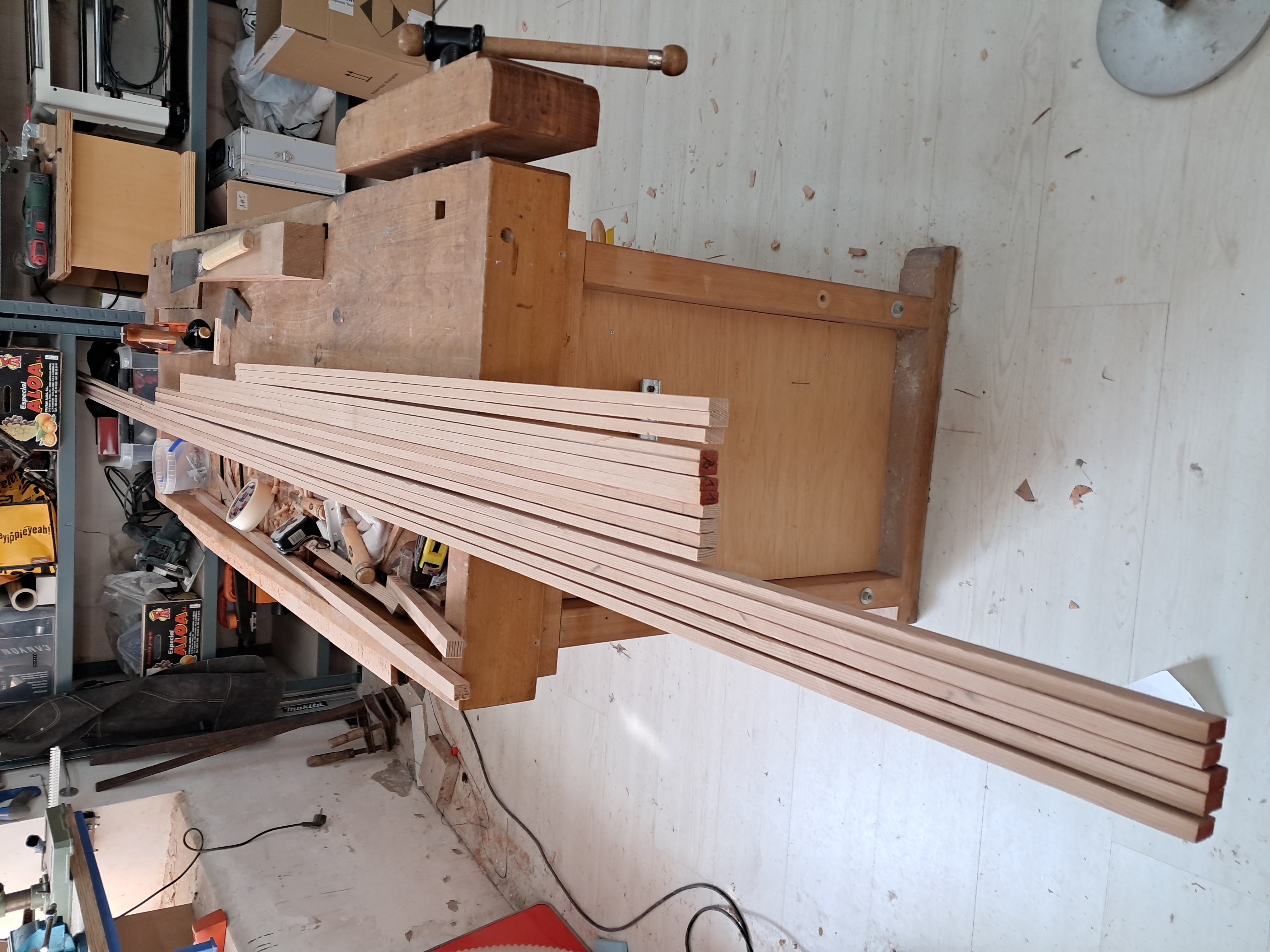

| Length (mm) | Available |
|---|---|
| 3690 | 5 |
| 1920 | 4 |
| 1680 | 4 |
| 1250 | 2 |
| 1200 | 1 |
From these available strips, I drew up the following plan. After all, not too bad and the number of scarf joints required is manageable.
| No. | Recipe | Length (mm) | Rest (mm) |
|---|---|---|---|
| 1 | 3690+1920 | 5610 | 1110 |
| 2 | 3690+1920 | 5610 | 1110 |
| 3 | 3690+1920 | 5610 | 1110 |
| 4 | 3690+1920 | 5610 | 1110 |
| 5 | 3690+RestNo1 | 4800 | 300 |
| 6 | 1680+1680+1200 | 4560 | 60 |
| 7 | 1680+1680+1250 | 4610 | 110 |
| 8 | 1250+RestNo2+RestNo3+RestNo4 | 4580 | 80 |

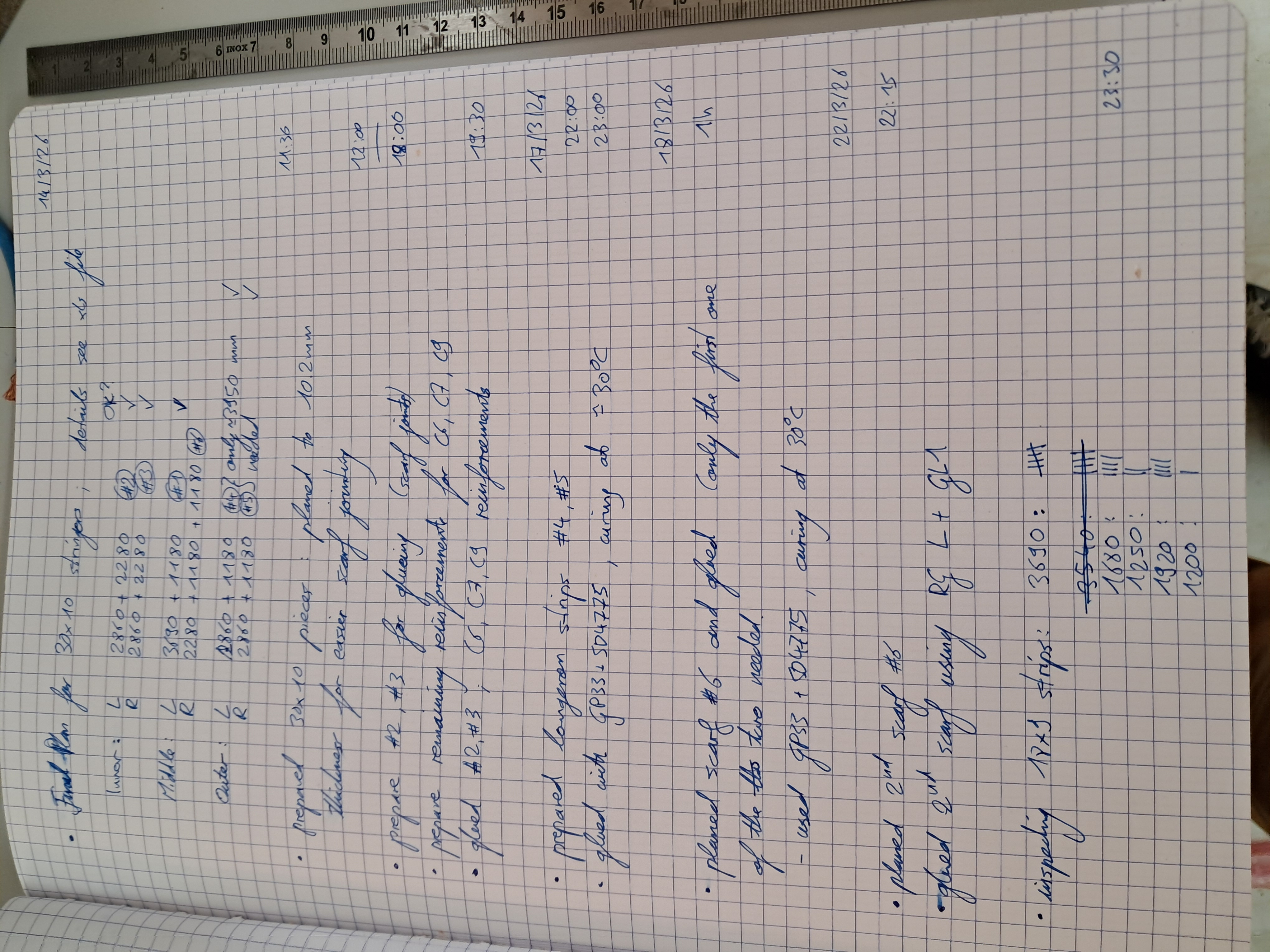

Finally, a picture of my journal.
×
